Description

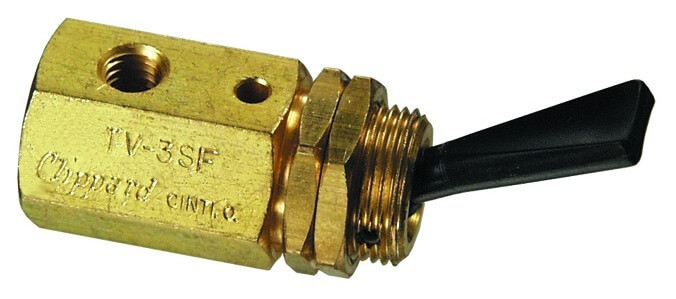

3-Way Toggle Valve, N-C, Plastic Toggle, #10-32
Actuation,Detented

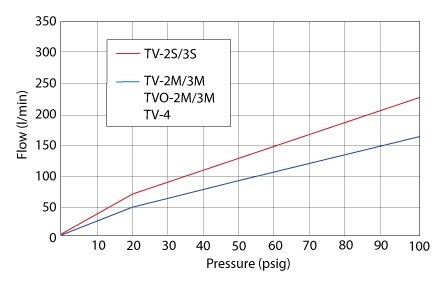

Air Flow,135 l/min @ 50 psig, 225 l/min @ 100 psig
Documentation,CA Prop. 65
Force to Rotate Toggle,1.0 oz. Nominal
Function,3-Way
Input psig,150 psig max.
Medium,Air, Water & Oil
Mount,15/32-32 Thread
Nut Supplied,Yes
Porting,Normally-Closed
Ports,#10-32
Seals,Nitrile Std., FKM & Krytox Optional
Seals,Nitrile
Stem Travel,1/8
Temperature Range,32 to 230?F
Thread,#10-32 Female
Toggle Style,Plastic
Travel Arc,60
Weight,0.1000
