Description

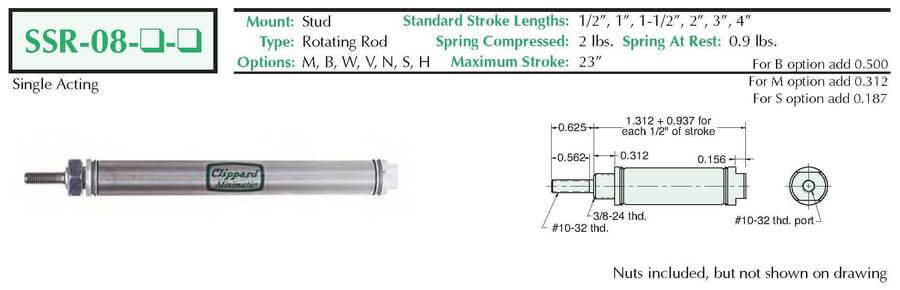

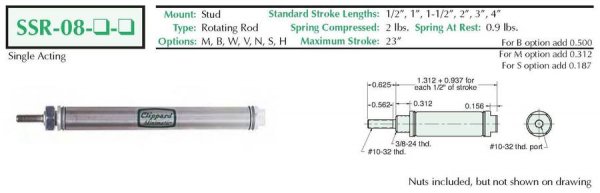

1/2″ S/S Cylinder, Stud Mount, Rotating Rod
2D Drawings,Drawings
Bore,1/2
Clevis Bracket Sku,CB-0895
Cushion Type,None
Cylinder Head Anodizing,No Anodizing
Cylinder Type,Single-Acting (S)
Documentation,CA Prop. 65
Extra Rod Extension,Available from your local distributor.
Length,3.812 (97 mm) (tip-to-tip)
Length, Cylinder,3.187 (81 mm)
Length, Rod (exposed),0.625 (16 mm)
Length, Rod Thread,0.562 (14 mm)
Lubrication,Silicone-Based Lube
Magnetic Piston,No
Material, Bushing,Sintered Bronze
Material, Rod,303 Stainless Steel
Material, Tube,304 Stainless Steel
Materials, End Caps,Aluminum with No Anodizing
Mount,Front Stud (S)
Port Thread,#10-32UNF
Pressure, Max,250 psi
Rear Port,Standard Rear Port
Rod Clevis,RC-0881
Rod End,RE-0885
Rod Nut,N03-32
Rod Thread Dia.,#10-32 (Standard)
Rod Type,Standard (R)
Rod Wipers,No
Rotated Ports,Standard Ports
Seal Material,Nitrile
Spring,Normal Spring
Spring Force, Compressed,2.0 lbs. +/- 10%
Spring Force, Rest,0.9 lbs. +/- 10%
Stroke,1
Stud Nut,N06-24A (included)
Temperature, Max,230 ?F (110 ?C)
Temperature, Min,-20 ?F (-29 ?C)
Weight,0.21
