Description

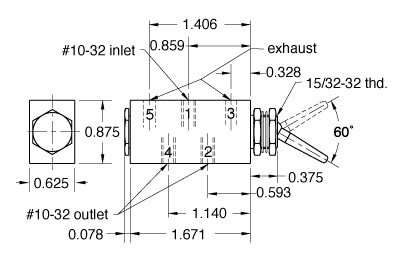

4-Way Toggle Valve, Plastic Toggle, #10-32
Plastic Toggle
Air Flow,170 l/min @ 50 psig; 280 l/min @ 100 psig
Documentation,CA Prop. 65
Exhaust,To atmosphere through holes in body
Force,12 oz. Nominal
Function,4-Way
Gasket,Nut & Lockwashers furnished.
Inlet / Outlet,#10-32 – #10-32
Input PSI,150 psig max.
Material, Body,Brass
Material, Spring,Stainless Steel Stem & Spring
Max PSI,150 psig / 10 bar max.
Medium,Air, Water or Oil
Mount,15/32-32 thread. Nuts and lockwashers furnished.
Seals,Optional FKM or Krytox seals available
Stem Travel,1/8
Temperature Range,32 to 230?F
Thread,#10-32
Toggle Style,Plastic
Travel Arc,60
Unit,Imperial
Weight,0.3000
