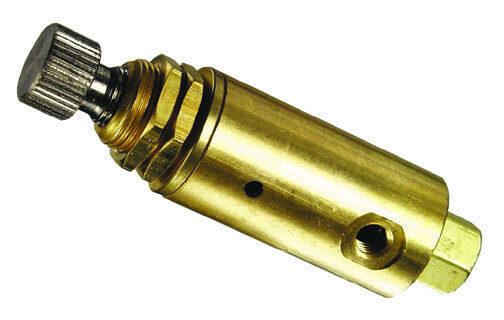

Clippard MAR-1P PRESSURE REGULATOR

$20.95

Clippard MAR-1P PRESSURE REGULATOR

STOCK STATUS: Call to Check Availability 1-800-277-4466

Please Notice: Item(s) that qualify will ship out the same day as long as the order is received before 1:00 PM EST (Monday-Friday), orders received after 1:00 PM are not guaranteed same-day shipment. Orders received after 1:00 PM EST on Friday will ship the following Monday. If you have questions regarding stock availability please call us at 1-800-277-4466 before placing an order.
In Stock: The item is in stock at our warehouse and qualifies to ship out the same day as long as the order is placed before 1:00 PM EST.
Factory Stock: The item is available from one of our support factory warehouses. Most items will ship the same day as long as the item is in stock and the order is received before 1:00 PM EST. If no stock is shown that means the factory could be out of stock, please call for the lead time.
Call to Check Availability: The item is listed as available to order from one of our supporting warehouses, STOCK IS NOT GUARANTEED. If a rush item is needed, please call and check the item lead time before placing an order.
Out of Stock: Item is discontinued, back-ordered, or limited stock is available. Please call to check stock availability.
Returns and Refunds: Please notice, some items may not be refundable or returnable. Please contact us before placing an order if this is of concern.

Description

Pressure Regulator, 1/8″ NPT Inlet, #10-32 Outlet, Knurled Knob, 10-100 psig
Adjustment Style Knurled Knob (Std.)
Air Flow 85 l/min @ 50 psig; 140 l/min @ 100 psig
Documentation CA Prop. 65
Exhaust holes to atmosphere
Force 25 lb. Nominal
Input PSI 300 psig max.
Max. Pressure Range 10 to 100 psig
Medium Air
Mount #15/323-32 thread. Nuts and lockwashers furnished.
Non-Relieving Option Relieving (Standard)
Nut Supplied Yes
Ports (Inlet / Outlet) Std. – 1/8″ NPT /#10-32
Seals Nitrile (FKM Optional)
Technical Data Sheet Data Sheet
Temperature Range 32 to 230?F (0 to 110?C)
Travel Arc 7/32″
Weight 0.1800

Details

Weight 2 lbs
Dimensions 5 × 5 × 5 in
